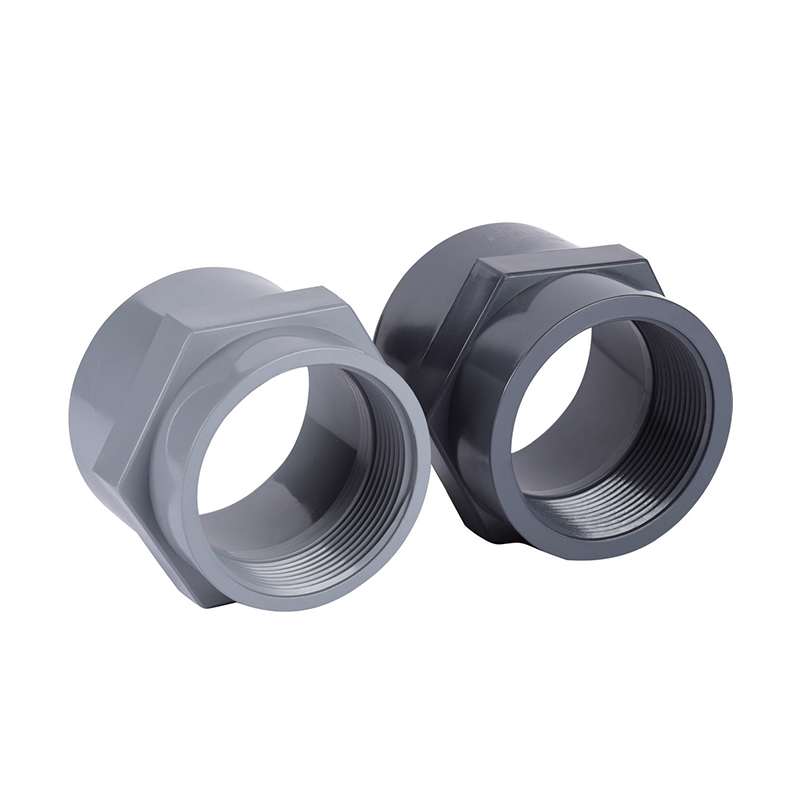

آداپتور زن SCH8O/DIN UPVC/CPVC

اسIZE/NOM.

dn20

dn25

dn32

dn40

dn50

dn63

dn75

dn90

dn110

(DN15)

(DN20)

(DN25)

(DN32)

(DN40)

DN50)

(DN65)

(DN80)

(DN100)

(1/2 اینچ)

(3/4 اینچ)

(1")

(1-1/4 اینچ)

(1-1/2")

(2")

(2-1/2")

(3")

(4 ")

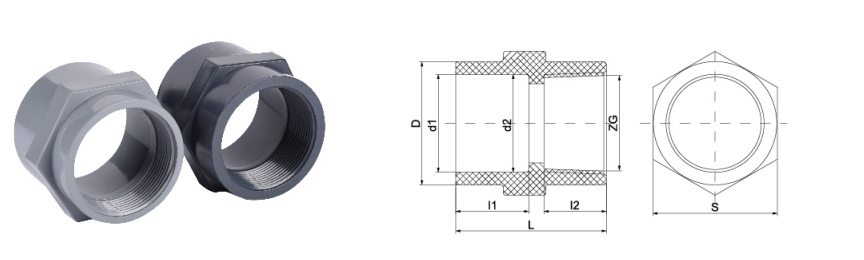

DIN

d1

20.3

25.3

32.3

40.3

50.3

63.3

75.3

90.3

110.4

d2

20.1

25.1

32.1

40.1

50.1

63.1

75.1

90.1

110.1

D

29

35

42

52

61

75

90

106

127

L

45

51

56

62

70

75

80

90

108

I1

20

22

24

28

31

38

44

51

61.5

I2

19

20

23

24

27

28

29

31

38

S

30

36

45

54

64

77

91

108

130

ZG

1/2"

3/4"

1”

1-1/4"

1-1/2"

2"

2-1/2"

3"

4"

ANSI

d1

21.54

26.87

33.66

42.42

48.56

60.63

73.38

89.31

114.76

d2

21.23

26.57

33.27

42.04

48.11

60.17

72.85

88.7

114.07

D

29.7

35.3

43.7

53.1

59.9

73.1

88

105.3

132

L

40.22

44.4

49.6

55.25

58.25

66.6

77.5

83.65

99.7

I1

23.22

26.4

29.57

32.75

35.93

39.1

45.45

48.63

58.15

NPT

1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

2-1/2"

3"

4"

JIS

d1

21.54

26.87

33.66

42.42

48.56

60.63

73.38

89.31

114.76

d2

21.23

26.57

33.27

42.04

48.11

60.17

72.85

88.7

114.07

D

29.7

35.3

43.7

53.1

59.9

73.1

88

105.3

132

L

40.22

44.4

49.6

55.25

58.45

66.6

77.5

83.65

99.7

I1

23.22

26.4

29.57

32.75

35.93

39.1

45.45

48.63

58.15

NPT

1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

2-1/2"

3"

4"
